Koman Family Outpatient Pavilion

  • area / size 156,000 sqft
  • Completed 2018
  • CO Architects completed the prominent yet energy efficient Koman Family Outpatient Pavilion in San Diego, California.

    Uniting previously disparate facilities within the heart of the University of California, San Diego, Health Sciences Campus in La Jolla, CA, the Koman Family Outpatient Pavilion establishes a new model for healthcare delivery within an academic setting. CO Architects served as both the architect and interior designer for the project, which is the culmination of an unprecedented, multi-year expansion and development phase for the campus.

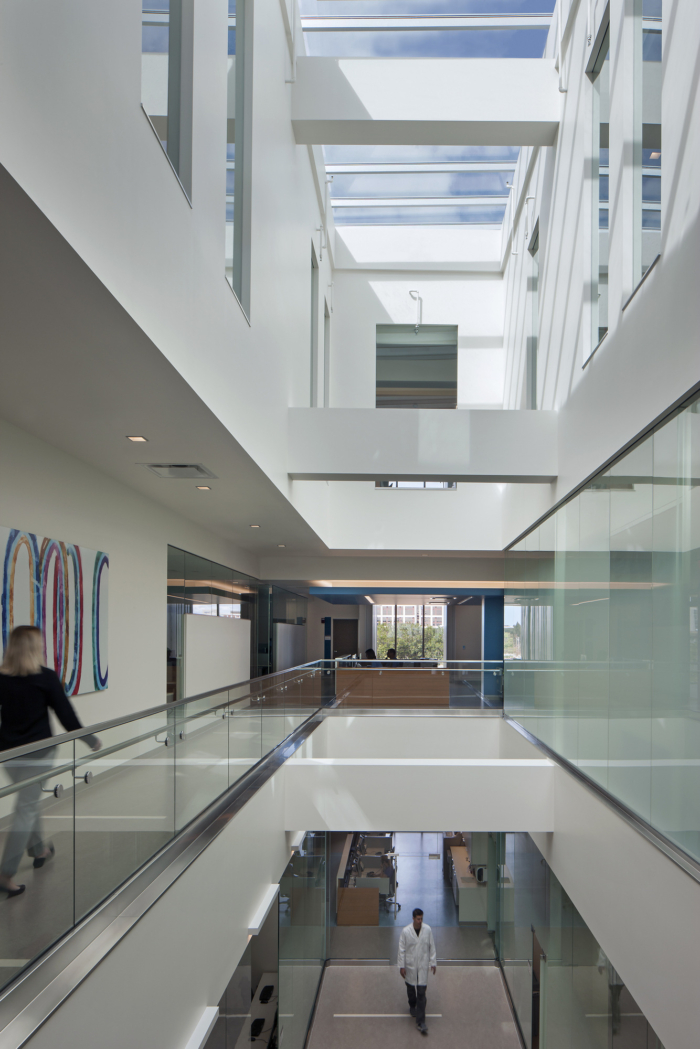

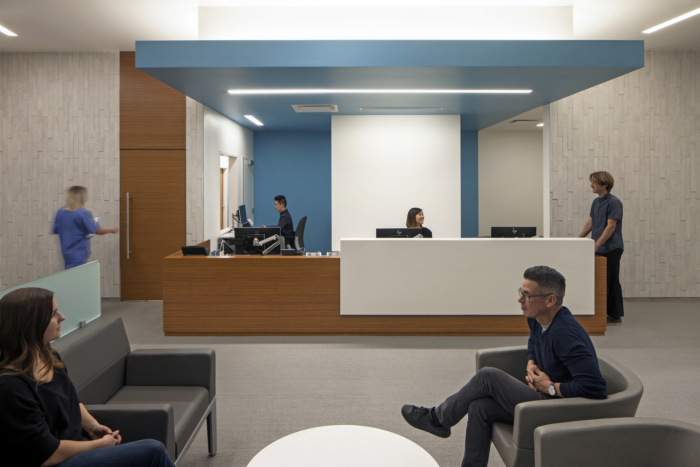

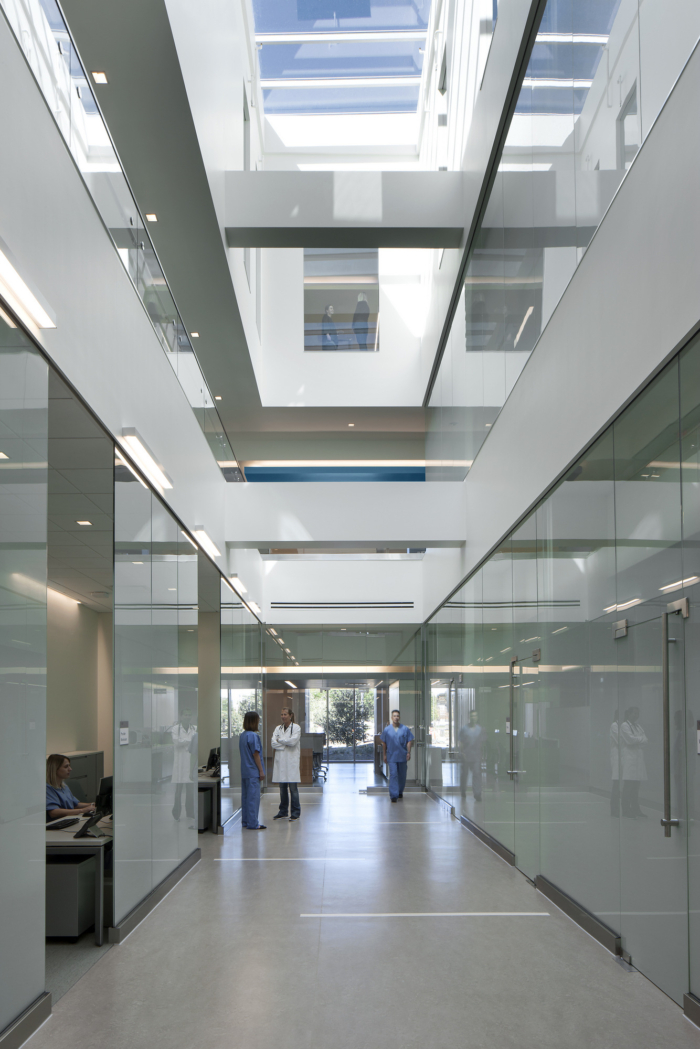

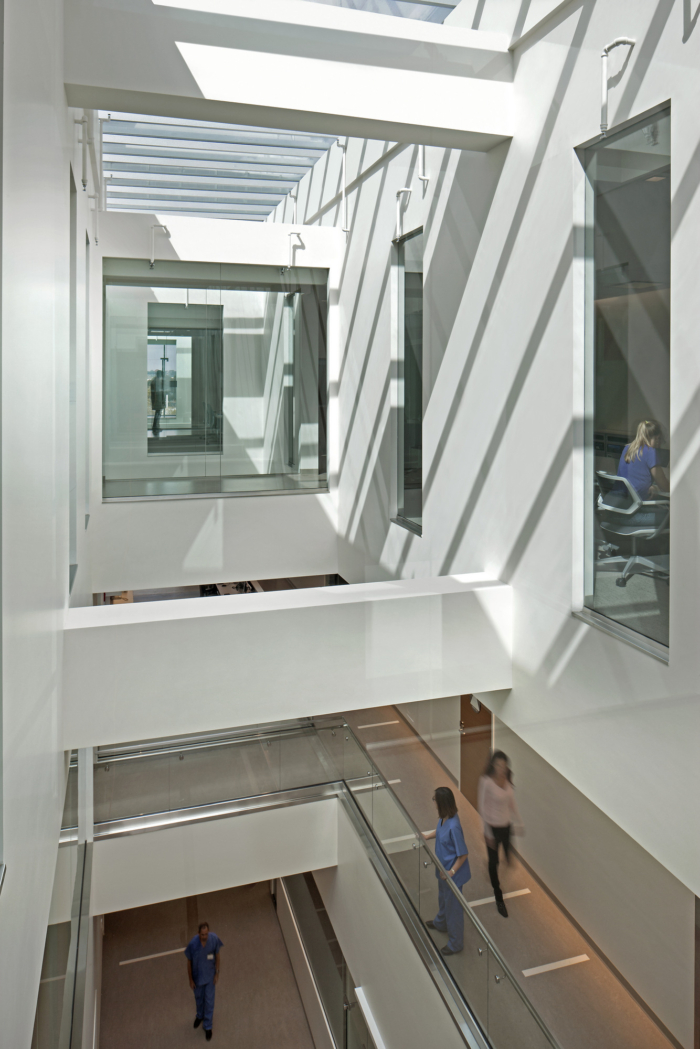

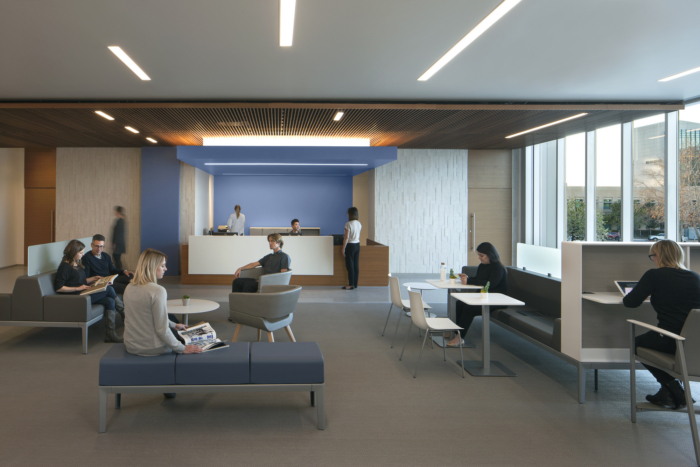

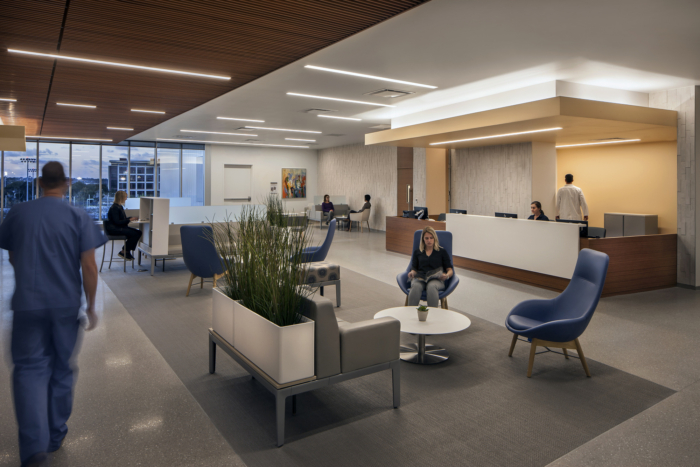

    The 156,000-square-foot, four-story, $140-million facility is an infill building that supports the adjacent Jacobs Medical Center. It comprises two masses connected by a public spine: Each mass is split by three-story light wells, resulting in an overall composition of four bars measuring approximately 40 to 50 feet wide. Illuminated by skylights, the wells respond to the campus’ existing pedestrian pathways and contain public spaces, including patient reception and waiting areas.

    The Pavilion is targeting LEED Gold certification and will likely outperform the stringent California Energy Code by more than 30 percent. The building is designed to minimize energy consumption by maximizing daylight— Southern California’s most abundant resource—which penetrates deeply into the floor plates through high-performance glass in each wing, thereby reducing artificial lighting loads, otherwise accommodated by efficient LED fixtures.

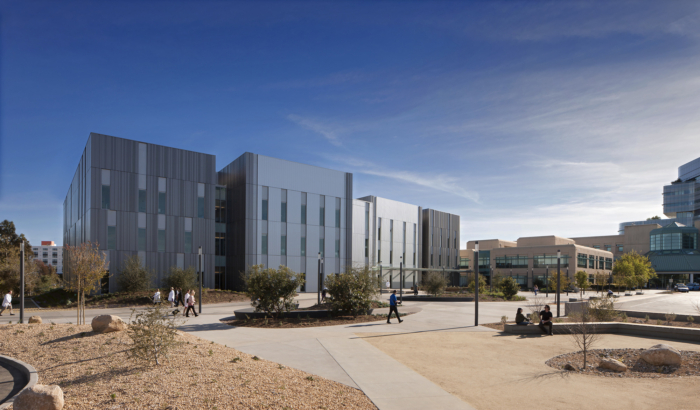

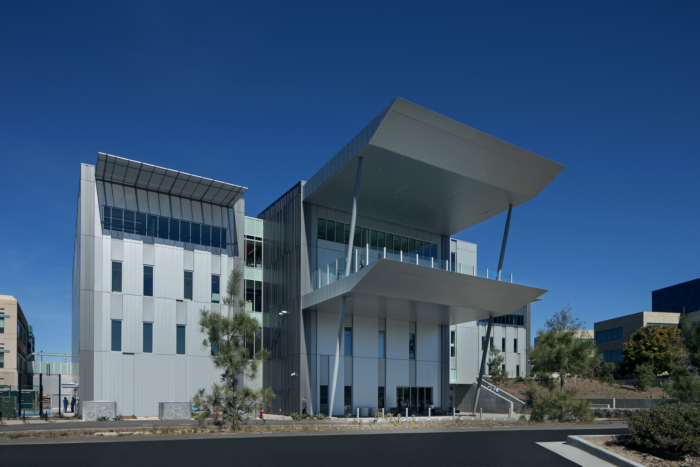

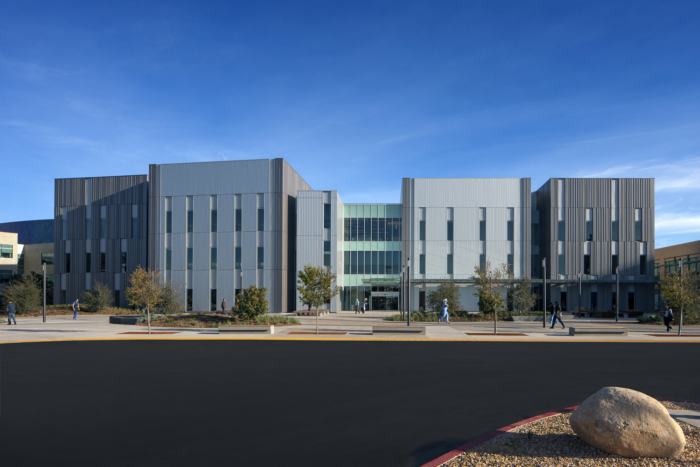

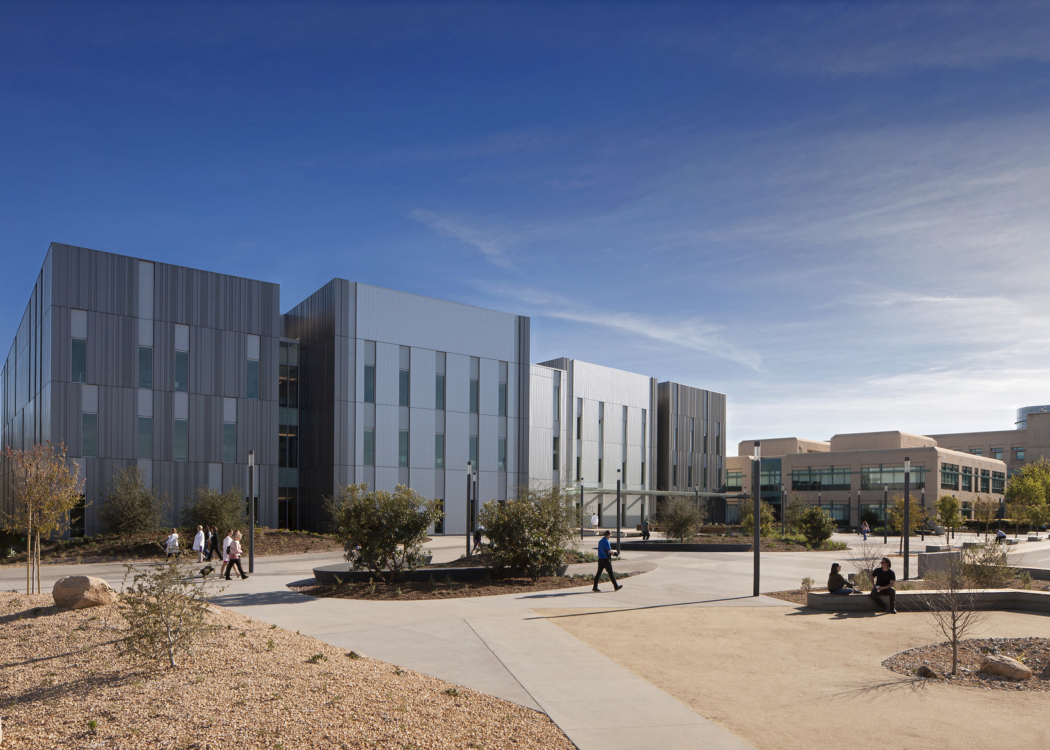

    As with many academic campus buildings, there is no “back façade.” A courtyard frames the main entry to the Pavilion, and other sides of the building respond to their adjacent contexts. Selected to mimic La Jolla’s landscape of sandy bluffs and former farmlands, exterior materials, such as vertically oriented corrugated metal panels, maintain an off-the-shelf, agrarian feeling. In order to minimize excessive heat gain and glare, the east and west façades were designed to be more solid and feature strategic punched openings. Following an “all-in-one” approach, the Pavilion offers multi-disciplinary specialists and comprehensive services for convenient patient care in one facility. CO Architects examined extensive data to define a flexible, right-sized interior program that considers the whole patient, delivers a continuum of care, and enhances and streamlines the visitor experience from arrival to departure.

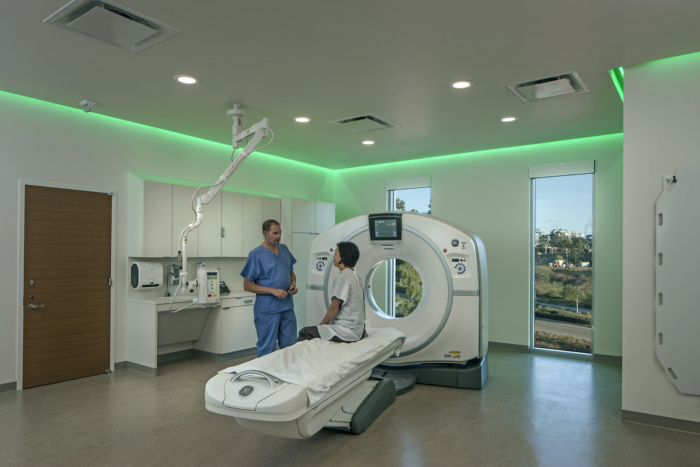

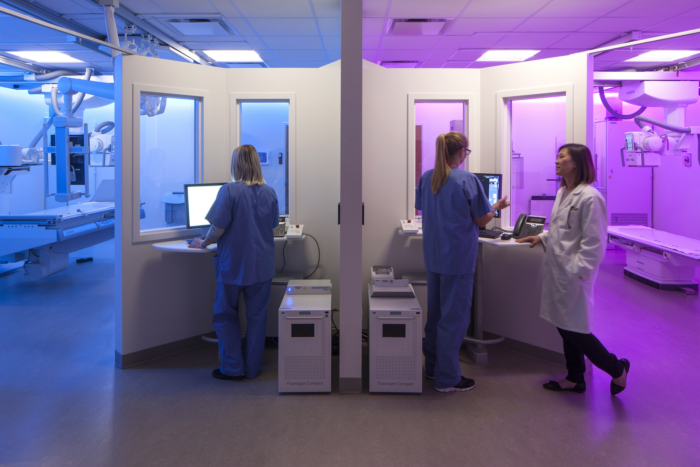

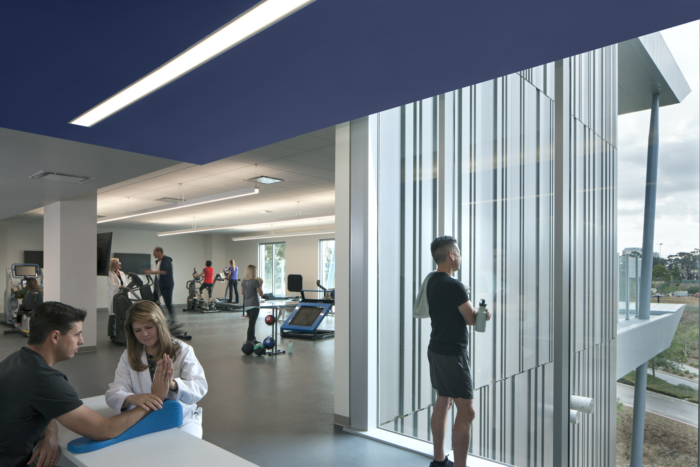

    The floors are efficiently stacked to centralize and integrate outpatient services, from surgical and interventional components to diagnostics and physical therapy. The Pavilion houses an ambulatory surgery center with eight operating rooms, an outpatient radiology center serving the entire campus, rehabilitation facilities, and a pharmacy. It also contains a variety of centers focusing on specialties such as musculoskeletal health, breast health, urology, pain, apheresis, stem cell transplants, and related imaging services.

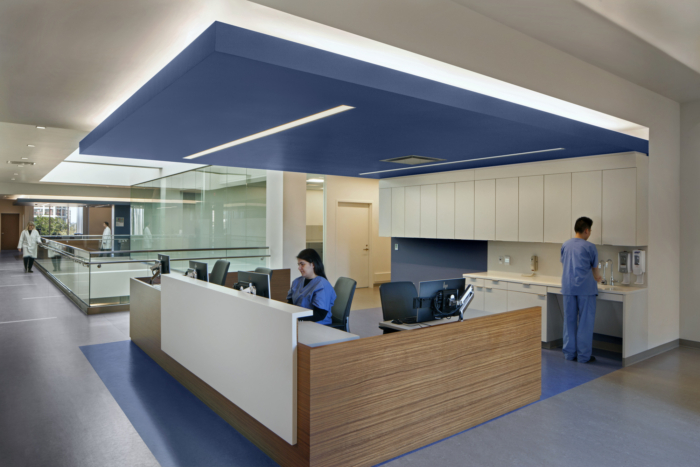

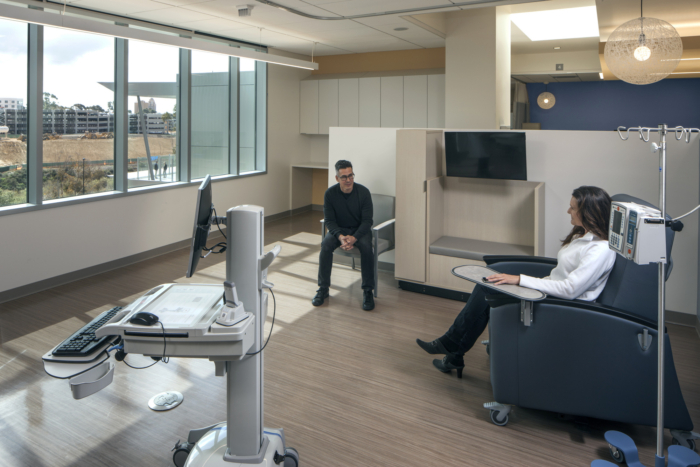

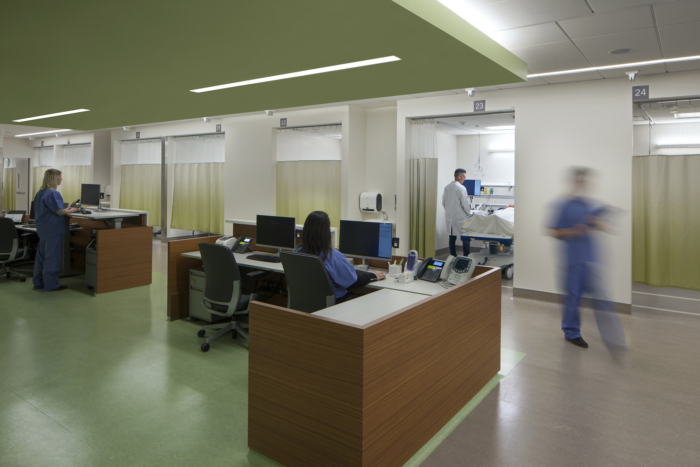

    Throughout, clinics are organized as modules and typically contain 12 exam room pods with separate patient and staff circulation zones to allow for a more personal treatment experience. By dividing “onstage” and “offstage” tasks, the pods operate as well-oiled machines. The exam rooms are designed to be adaptable depending on schedules and specialties. Support and treatment areas are often shared between two clinics, significantly reducing the building’s square footage while encouraging interdisciplinary interaction.

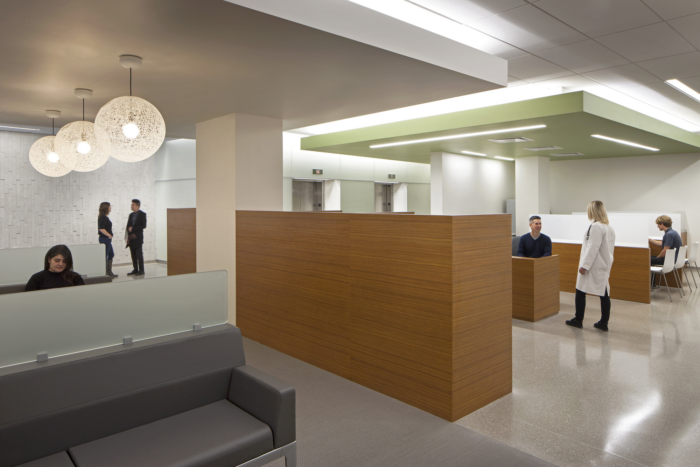

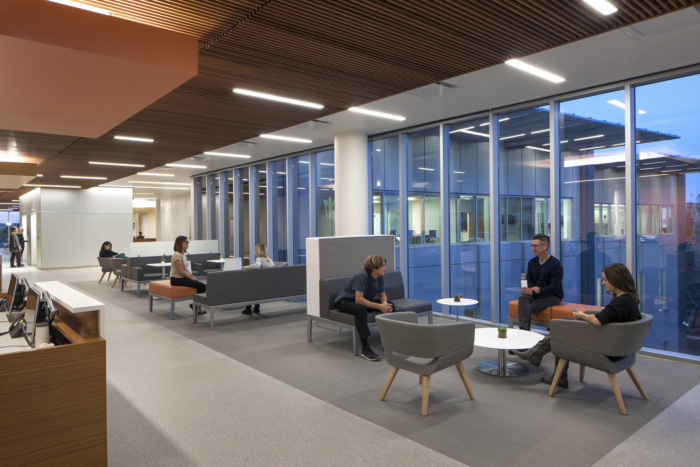

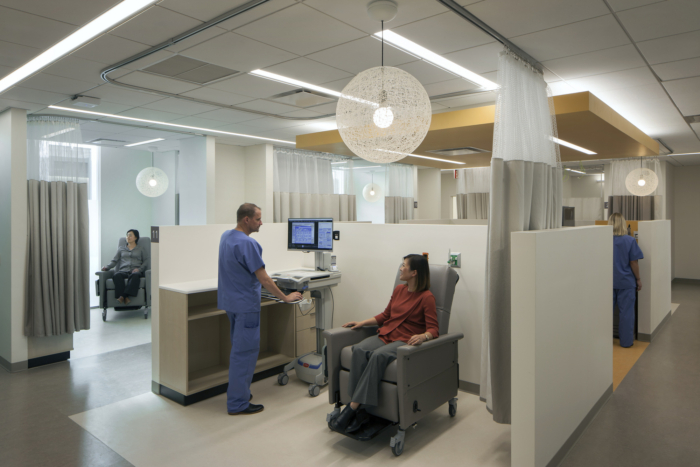

    CO Architects conceived each floor with a distinct identity to aid in wayfinding. The designers integrated signage and incorporated intuitive color cues that reference natural elements, from grass green in the basement to sunny shades on upper floors. Other interior finishes lend texture and softness—such as patterned wall tiles, neutral terrazzo floors, and carpet-like floor tiles—while meeting the durability requirements of a healthcare environment. Furnishings were selected to accommodate seating for a variety of users and promote activity as needed.

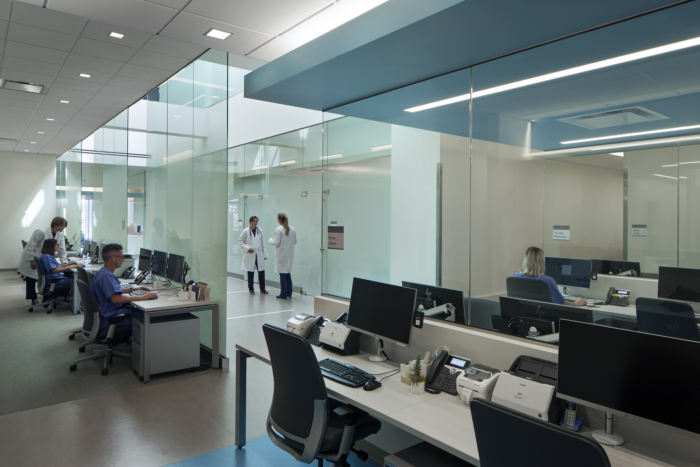

    The designs of the faculty and staff workplaces within the Pavilion had to not only bring together those from many different specialties and generations, but also create an environment that promotes cross-pollination. CO Architects conceived open work areas in which staff can choose from a variety of seating heights, and they also integrated informal lounges and hoteling zones throughout the building.

    The Pavilion serves as an affordable model for patient care in an academic setting, offering value from a customer perspective, while also supporting UC San Diego’s vision to create a healthier world. The design is nimble in order to balance these diverse needs, while continually accommodating cutting-edge technologies and new models of working and thinking.

    ArchitectCO Architects
    General ContractorRudolph & Sletten
    Photographer: Tom Bonner
